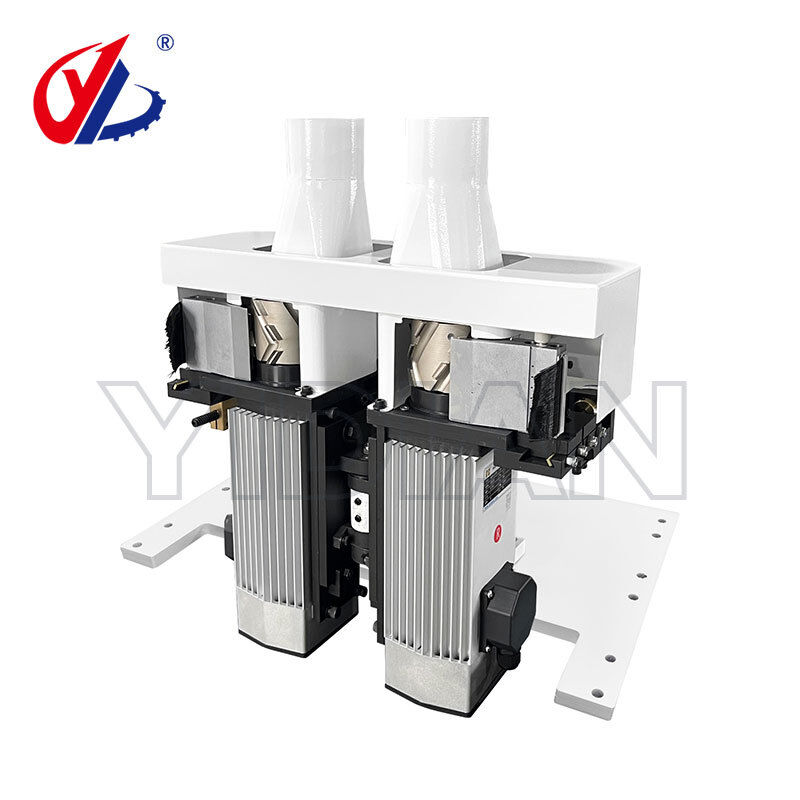

Servo Pre-Milling Unit for Edgebanding Machine

High-Precision Pre-Milling Solution

The Servo Pre-Milling Unit is an advanced solution designed to deliver high-precision, stable, and burr-free edge preparation before edgebanding. With intelligent servo control, it significantly improves panel edge quality, ensuring no chipping, no burrs, and superior finishing results.

Key Features

Servo Precision Control
Equipped with a servo system for accurate control of cutting position and depth, greatly enhancing milling precision and ensuring stable operation.

High-Quality Cutting Performance
Achieves clean edges without chipping or burrs, providing an ideal surface for subsequent edge banding.

Accurate Positioning System
Ensures precise and consistent milling in a single pass, improving processing efficiency and product quality.

Dual Profiling (Double Guide) Design
Features dual tracking shoes for automatic alignment and real-time correction, preventing panel deviation and ensuring flat, straight edges.

Directional Chip Extraction
Optimized chip removal system keeps the working area clean, reducing dust and preventing clogging.

Servo-Driven Adjustment Mechanism
The servo motor drives a lead screw to finely adjust the front guide plate, allowing precise control of cutting allowance.

Digital Caculator Adjustment
Enables accurate height adjustment of the milling cutters with clear and intuitive parameter display.

Dual-Nut Adjustment System

Nut 1: Adjusts pre-load pressure

Nut 2: Controls cutter oscillation range
Ensures stable operation and reduces vibration impact during cutting.

Performance Advantages

Compared with conventional pre-milling units that rely on manual adjustment and are prone to chip clogging, unstable cutting, and inconsistent results, this servo pre-milling system offers:

Digitalized precision control

Higher cutting stability and consistency

Reduced risk of chip blockage and downtime

Significantly improved edge quality before banding

Its enclosed structure and oscillating cutting design further enhance chip evacuation and prevent jamming, making it an ideal upgrade for modern high-speed edgebanding production lines.

Specifications
